flexibility meets distinctive design.
Leading PC component today announced the eagerly awaited Meshify 2. Not only does the Meshify 2 range stay true to its legacy in terms of uncompromising design – it also comes with welcome additions like a movable wall for enhanced flexibility, a fully removable top panel and a front nylon filter that can be removed for increased airflow. Alongside the mid-tower model, the XL version is also launching today; accommodating motherboards all the way up to and including SSI-EEB, holding several radiators and up to 23 storage devices without issue.

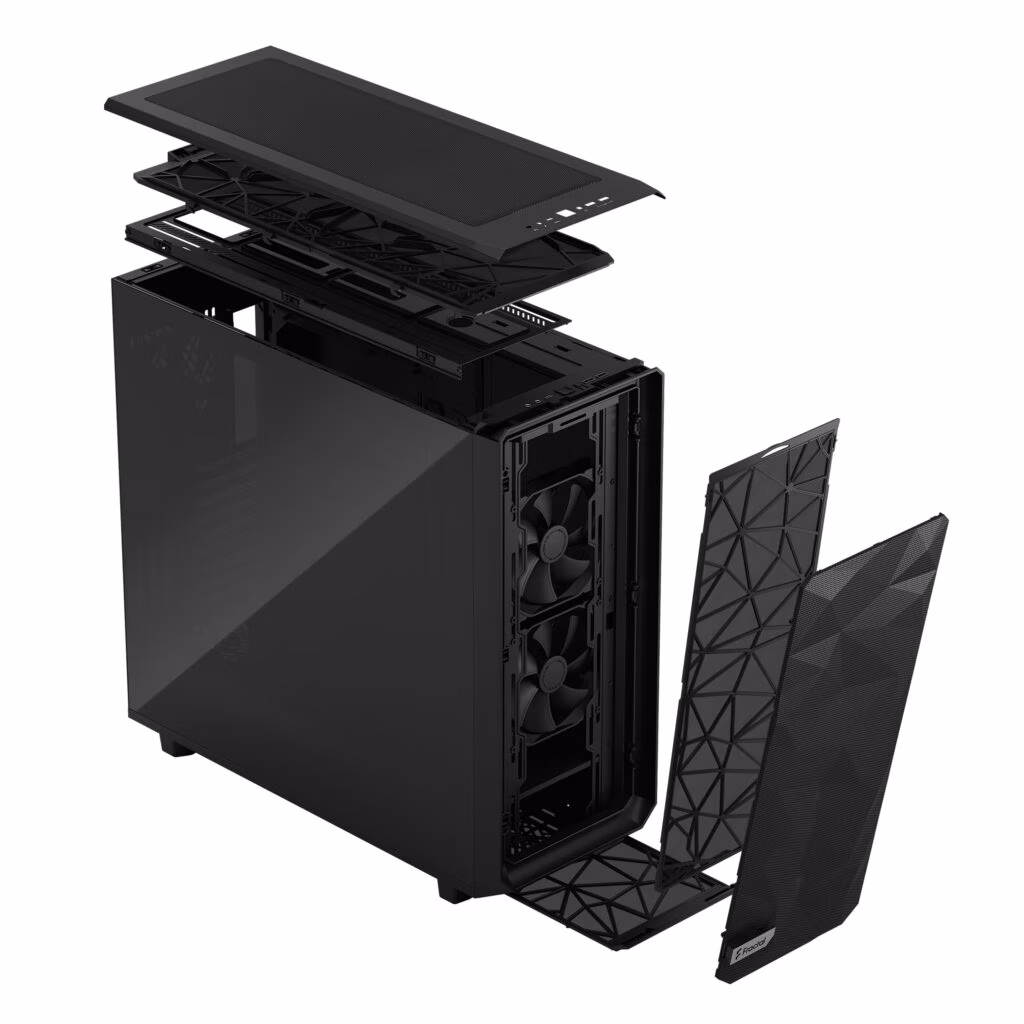

Like black diamond facets, the angular asymmetry of the Meshify line has carved a space uniquely its own. And with a sturdy construction that is both stealthy and smooth, the Meshify 2 Series is sure to impress with its unique mix of style and substance. It is a textbook example of what you should expect from a modern case when it comes to modularity, flexibility and ease of use. Spacious and extensively adaptable dual-layout interiorNew chassis design that opens up to fully expose the case interior on three sides for totally unhindered installation and cable routingNew front nylon filter that can be removed for increased airflowNew front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mountsThree front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10GbpsUltra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the caseOutstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fansEasy-to-clean high airflow nylon filters on the top and base with full PSU coverage and convenient front accessDetachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board.
|
|
Specification |
Meshify 2 |
Meshify 2 XL |
3.5″/2.5″ drive mounts |
6 included, 14 positions total + 1 Multibracket |
6 included, 18 positions total + 2 Multibrackets |
Dedicated 2.5″ drive mounts |
2 included, 4 positions total |
2 included, 5 positions total |
5.25″ drive mounts |
0 |
0 |
Expansion slots |
7 + 2 |
9 + 3 |
Motherboard compatibility |
E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB |
Power supply type |
ATX |
ATX |
Front interface |
1x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, Audio I/O, Power button, Reset button |
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts |
9x 120/140 mm |
11x 120 mm or 9x 140 mm |
Front fan |
3x 120/140 mm (2x Dynamic X2 GP-14 included) |
4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included) |
Top fan |
3x 120/140 mm |
4x 120 mm or 3x 140 mm |
Rear fan |
1x 120/140 mm (1x Dynamic X2 GP-14 included) |
1x 120/140 mm, (1x Dynamic X2 GP-14 included) |
Bottom fan |
2x 120/140 mm |
2x 120/140 mm |
Dust filters |
Top, front and bottom |
Top, front and bottom |
Front radiator |
Up to 360/280 mm |
Up to 480/420 mm |
Top radiator |
Up to 360/420 mm |
Up to 480/420 mm |
Rear radiator |
120 mm |
120 mm |
Bottom radiator |
Up to 240/280 mm |
Up to 240/280 mm |
PSU max length |
250 mm (with HDD cage installed) |
250 mm (both HDD cages installed) |
GPU max length |
Storage layout: 315 mm
Open layout: 491 mm (467 mm w/ front fan) |
Storage layout: 359 mm
Open layout: 549 mm (524 mm w/ front fan) |
CPU cooler max height |
185 mm |
185 mm |
Cable routing space |
30 mm |
30 mm |
Cable routing grommets |
Yes |
Yes |
Fixed velcro straps |
Yes |
Yes |
Tool-less push-to-lock |
Top, front and side panels |
Top, front and side panels |
Captive thumbscrews |
HDD, SSD and PSU brackets |
HDD, SSD and PSU brackets |
Left side panel |
Steel or tempered glass |
Tempered glass |
Right side panel |
Steel |
Steel |
Case dimensions (LxWxH) |
542 x 240 x 474 mm |
600 x 240 x 566 mm |
Case dimensions w/o feet/protrusions/screws |
541 x 240 x 454 mm |
588 x 240 x 547 mm |
Net weight |
Solid: 10.1 kg
TG: 10.5 kg |
14.1 kg |
Package dimensions (LxWxH) |
634 x 542 x 324 |
651 x 330 x 684 |
Gross weight |
Solid: 12.8 kg
TG: 13.2 kg |
16.4 kg |
|
|
|
|
|
|
|
|
Meshify 2 |
USD |
GBP |
EURO |
SEK |
Meshify 2 Black Solid |
129.99 |
119,99 |
132,99 |
1419 |
Meshify 2 Black TG Dark Tint |
139.99 |
128,99 |
142,99 |
1529 |
Meshify 2 Black TG Light Tint |
139.99 |
128,99 |
142,99 |
1529 |
Meshify 2 Gray TG Light Tint |
139.99 |
128,99 |
142,99 |
1529 |
Meshify 2 White TG Clear Tint |
139.99 |
128,99 |
142,99 |
1529 |
|
|
|
|
|
|
|
Meshify 2 XL |
USD |
GBP |
EURO |
SEK |
Meshify 2 XL Black TG Dark Tint |
179.99 |
165,99 |
181,99 |
1969 |
Meshify 2 XL Black TG Light Tint |
179.99 |
165,99 |
181,99 |
1969 |
|
|
|
|
|
|
|
|
